Product Specification
| Sirles | Flip Switches |
| Model | HX TS36HCA |
| 1. Rating | 50mA 12VDC |
| 2. Constrution Dimension | Apply to the appended drawing |
| 3. Appearance | Have no remarkable damage, crack and rust etc. |
| 4. Contactloop | Monople loop |
Product Description

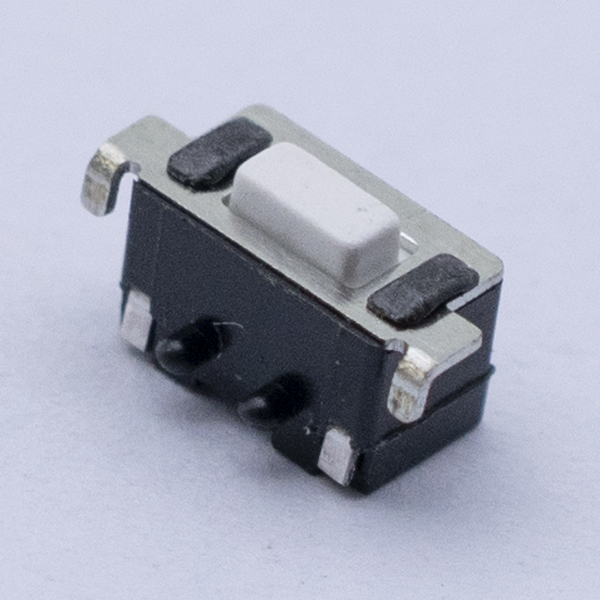

The Tactile Switch 3×6 PCB Side Press is specially designed for compact electronic devices like Bluetooth speakers, where space efficiency and user-friendly operation are essential. With its side-actuated design, it fits seamlessly onto the edge of PCBs, allowing easy integration into slim enclosures without sacrificing performance or accessibility.
- Item Name: Tactile switch TS3643CA side press 290
- Operating Temperature: -25 to 70℃
- Relative Humidity: ≤80%RH
- Rating: DC12V 50mA
- Contact Resistance: ≤100mΩ
- Resistance Insulation: ≥100mΩ
- Operating Force: 250±50gf
- Dielectric Strength: AC 250V 50HZ/1Min.
- Contact Journey: 0.15±0.10mm
- Lifetime: 30, 000 cycles min
Application Field
-
Bluetooth Speakers: Power, volume, or mode control switches
-
Portable Audio Devices
-
Remote Controls and Wearables
-
Smart Home Controllers
-
Compact Consumer Electronics
