Product Specification
| Sirles | Flip Switches |
| Model | HX TS24ZJ |
| 1. Rating | 50mA 12VDC |
| 2. Constrution Dimension | Apply to the appended drawing |
| 3. Appearance | Have no remarkable damage, crack and rust etc. |
| 4. Contactloop | Monople loop |
Product Description
Crafted for integration into Bluetooth speakers, these tactile switches feature a low-profile design with high contact accuracy and long operational life. They’re ideal for play/pause, volume control, and mode selection functions, providing fast and reliable actuation.

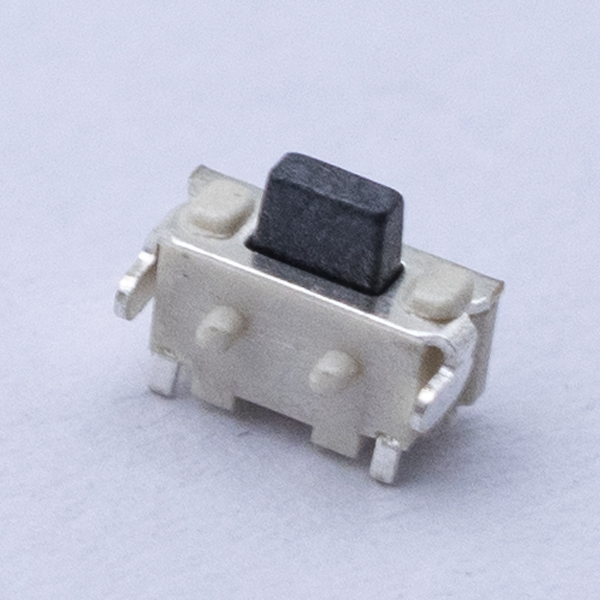

- Item Name: Tactile switch TS24ZJ with column 160GF
- Operating Temperature: -25 to 70℃
- Relative Humidity: ≤80%RH
- Rating: 50m A DC12V
- Contact Resistance: ≤50mΩ
- Resistance Insulation: ≥100mΩ
- Operating Force: 160±50gf
- Dielectric Strength: 250V 50Hz 1Min
- Contact Journey: 0.15±0.10mm
- Lifetime: 30, 000 cycles min
Application Field
-
Portable Bluetooth Speakers
-
Wireless Sound Systems
-
Smart Audio Devices
-
Personal Audio Gadgets
