Product Specification
| Sirles | Tact Switches |
| Model | HX-TS263005 |
| 1. Rating | 50mA 12VDC |
| 2. Constrution Dimension | Apply to the appended drawing |
| 3. Appearance | Have no remarkable damage, crack and rust etc. |
| 4. Contactloop | Monople loop |
Product Description

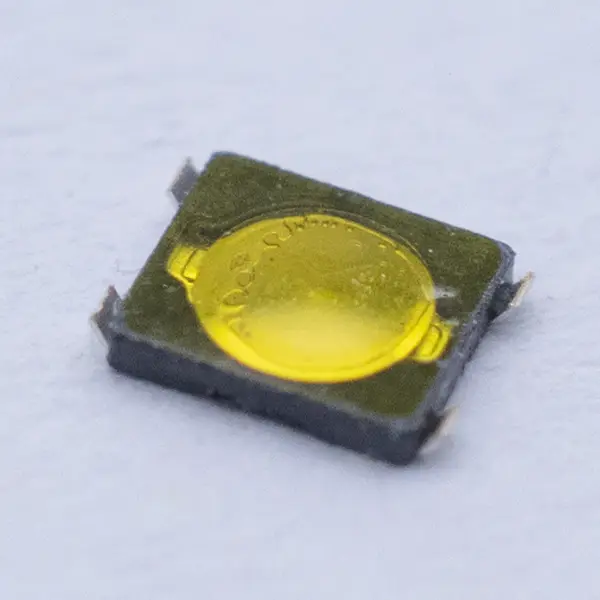

The Hanxia Miniature Tact Switch is specially designed for use in compact medical devices like digital blood pressure monitors. With a space-saving profile and dependable tactile feedback, it offers reliable user input for critical health monitoring equipment.
- Item Name: Official Website Touch Switch TS263005A 200GF Full Seal Tape 002
- Operating Temperature: -20℃~+70℃
- Relative Humidity: 25~85%
- Rating: 50mA 12V DC
- Contact Resistance: ≤100mΩ
- Resistance Insulation: ≥100mΩ
- Operating Force: 250gf±50gf
- Dielectric Strength: 250V 50Hz 1Min
- Contact Journey: 0.2±0.1mm
- Lifetime: 30000 cycles min
Application Field
-
Digital blood pressure monitors
-
Medical diagnostic tools
-
Handheld health tracking devices
-
Portable wellness equipment
-
Home-use medical devices
Why Choose Us
At Hanxia, we are committed to delivering high-quality electronic components backed by reliable service and technical excellence. Here’s what sets us apart:
Extensive Industry Experience
Founded in 2014, Hanxia brings over a decade of expertise in electronic component manufacturing. We proudly serve 7,500+ customers across global markets, including the U.S., Germany, South Korea, Taiwan, and Hong Kong.
Advanced, Efficient Production
- 38 Fully Automated Production Lines: Capable of producing over 2 million units daily to ensure timely order fulfillment.
- Cutting-Edge Technology: In collaboration with Korean partners, we utilize fully automated assembly systems that reduce human error and improve precision.
- Fast, Hassle-Free Delivery: We offer risk-free shipping and a 90-day no-questions-asked return policy for complete peace of mind.
Strict Quality Control
Quality is built into every stage of our process:
- Material Inspection
- In-line Sampling
- Final Product Testing
 |
 |
 |
 |
 |
 |
