Product Specification
| Sirles | Flip Switches |
| Model | HX TSD4A DZ |
| 1. Rating | 50mA 12VDC |
| 2. Constrution Dimension | Apply to the appended drawing |
| 3. Appearance | Have no remarkable damage, crack and rust etc. |
| 4. Contactloop | Monople loop |
Product Description

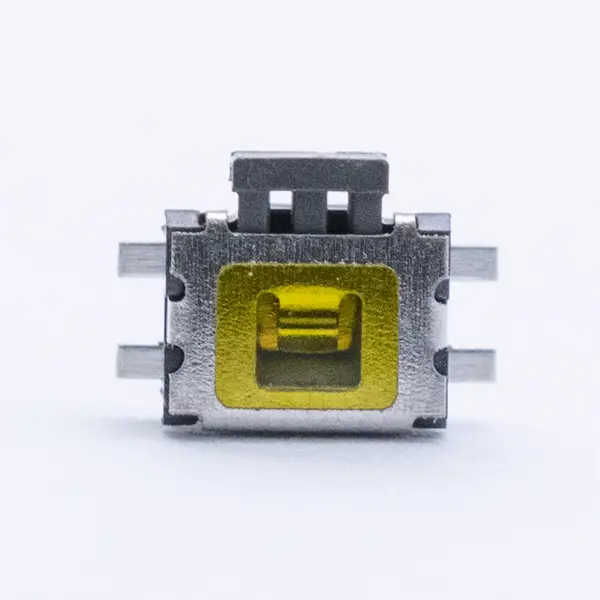

Hanxia’s Mode Switching Tactile Switch is engineered for reliable performance in multi-function control systems requiring accurate mode transitions. With a compact design and crisp tactile feedback, this switch is ideal for electronics that demand both user responsiveness and long-term durability.
- Item Name: Tact Switch TSD4A 250GF with Column 161
- Operating Temperature: -20 to 70℃
- Relative Humidity: ≤80%RH
- Rating: 50mA 12V DC
- Contact Resistance: ≤100mΩ
- Resistance Insulation: ≥100mΩ
- Operating Force: 250gf±50gf
- Dielectric Strength: 250V 50Hz 1min
- Contact Journey: 0.25±0.1mm
- Lifetime: 30, 000 cycles
Application Field
-
Consumer Electronics: Ideal for switching between functions or settings in devices like cameras, audio systems, and remotes.
-
Automotive Systems: Used in dashboards, infotainment panels, or drive mode selectors.
-
Industrial Controls: Perfect for machinery or tool settings requiring mode toggling.
-
Medical Devices: Offers reliable feedback and control in diagnostic or monitoring equipment.
-
Smart Home Devices: Used in thermostats, control panels, or multi-function switches.
Why Choose Us
Choosing Hanxia means choosing the guarantee of high quality, reliability and excellent service. Here are the reasons why we are trustworthy:
- Rich industry experience
Since its establishment in 2014, Hanxia has accumulated 10 years of professional experience in the field of electronic component manufacturing. We serve more than 7,500 customers in many regions around the world, including the United States, Germany, South Korea, Taiwan and Hong Kong. - Efficient automated production
38 fully automated production lines: daily production capacity exceeds 2 million pieces, ensuring on-time delivery of orders.
Advanced technology: technical cooperation with Korean counterparts, adopting fully automatic assembly production technology, effectively reducing human errors.
Fast delivery: zero-risk delivery, providing 90-day no-reason return service.
Quality Comes from Details
There are quality checkpoints at every key stage of production, including raw material inspection, online sampling inspection and finished product inspection.
Provide 100% factory inspection to ensure that each product meets the quality standards expected by customers.
 |
 |
 |
 |
 |
 |
Hanxia, established in 2008, specializes in the R&D and production of switches and sockets. Its production base is in Wenzhou, Zhejiang, with 110+ employees and a 4,300 m² facility, and a sales branch in Bao’an, Shenzhen, for customer service. Hanxia serves 3,500+ customers globally, with stable partners in the U.S., Germany, South Korea, Japan, Hong Kong, and Taiwan. It has a strong sales presence in China’s Pearl River Delta and collaborates with listed companies like Alibaba Tmall Magic Box, PISEN Group, and Panteng Technology. The company offers fast, reliable global delivery, a 365-day return policy for quality issues, and professional engineering support, earning widespread customer trust.
