Product Specification
| Sirles | Tact Switches |
| Model | HX TS3735PA 250gf 030 |
| 1. Rating | 50mA 12VDC |
| 2. Constrution Dimension | Apply to the appended drawing |
| 3. Appearance | Have no remarkable damage, crack and rust etc. |
| 4. Contactloop | Monople loop |

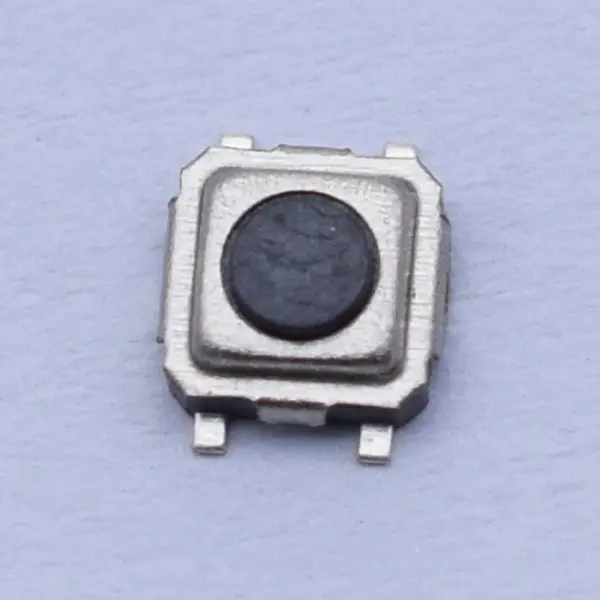

Product Description
The Hanxia Momentary Tact Switch is engineered for precision and compact functionality in a wide range of electronic applications. Its momentary action ensures quick, responsive input with minimal space requirements, making it ideal for modern, space-conscious device designs.
- Item Name: Official Website Touch Switch TS3315A 250GF Life 500,000 Times
- Operating Temperature: -25 to 70℃
- Relative Humidity: ≤80%RH
- Rating: 50mA 12V DC
- Contact Resistance: ≤100mΩ
- Resistance Insulation: ≥100mΩ
- Operating Force: 250gf±50gf
- Dielectric Strength: 250V 50Hz 1Min
- Journey: 0.2±0.1mm
- Lifetime: 500,000 cycles min
Application Field
-
Consumer electronics
-
Remote controls
-
Wearable devices
-
Automotive interfaces
-
Smart home devices
-
Audio and media equipment
Why Choose Us
At Hanxia, we are committed to delivering high-quality electronic components backed by reliable service and technical excellence. Here’s what sets us apart:
Extensive Industry Experience
Founded in 2014, Hanxia brings over a decade of expertise in electronic component manufacturing. We proudly serve 7,500+ customers across global markets, including the U.S., Germany, South Korea, Taiwan, and Hong Kong.
Advanced, Efficient Production
- 38 Fully Automated Production Lines: Capable of producing over 2 million units daily to ensure timely order fulfillment.
- Cutting-Edge Technology: In collaboration with Korean partners, we utilize fully automated assembly systems that reduce human error and improve precision.
- Fast, Hassle-Free Delivery: We offer risk-free shipping and a 90-day no-questions-asked return policy for complete peace of mind.
Strict Quality Control
Quality is built into every stage of our process:
- Material Inspection
- In-line Sampling
- Final Product Testing
 |
 |
 |
 |
 |
 |
