Product Specification
| Sirles | Flip Switches |
| Model | HX TS5208A 250GF |
| 1. Rating | 50mA 12VDC |
| 2. Constrution Dimension | Apply to the appended drawing |
| 3. Appearance | Have no remarkable damage, crack and rust etc. |
| 4. Contactloop | Monople loop |
Product Description

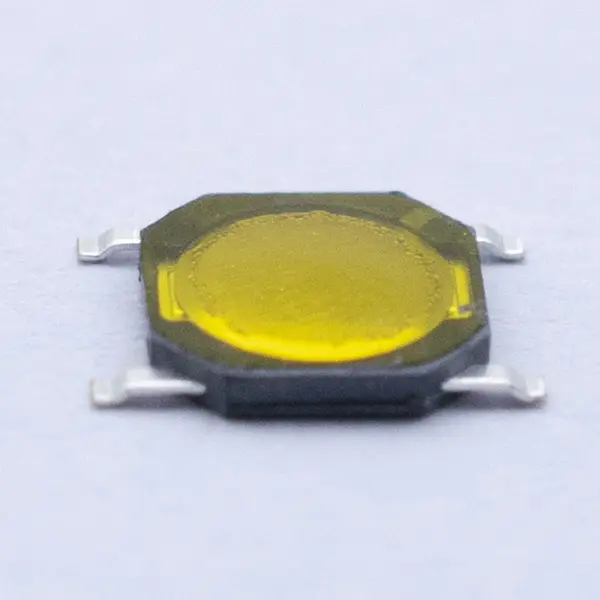

Hanxia’s 5×2 Mount Tact Switch is a compact and reliable solution designed for PCB applications where space is limited but performance is crucial. With a slim profile and consistent tactile feedback, this switch is ideal for modern electronic devices that demand precision and responsiveness.
- Item Name: Tact Switch TS5208A 250GF Tape 290
- Operating Temperature: -25 to 70℃
- Relative Humidity: ≤80%RH
- Rating: 50mA 12V DC
- Contact Resistance: ≤100mΩ
- Resistance Insulation: ≥100mΩ
- Operating Force: 250gf±50gf
- Dielectric Strength: 100V 50Hz 1min
- Contact Journey: 0.25±0.10mm
- Lifetime: 100, 000 cycles
Application Field
-
Wearable electronics and compact devices
-
PCB assemblies in consumer electronics
-
Communication equipment and portable gadgets
-
Control interfaces for industrial and medical instruments
