Product Specification
| Sirles | Tact Switches |
| Model | HX TS36HZJ |
| 1. Rating | 50mA 12VDC |
| 2. Constrution Dimension | Apply to the appended drawing |
| 3. Appearance | Have no remarkable damage, crack and rust etc. |
| 4. Contactloop | Monople loop |
Product Description

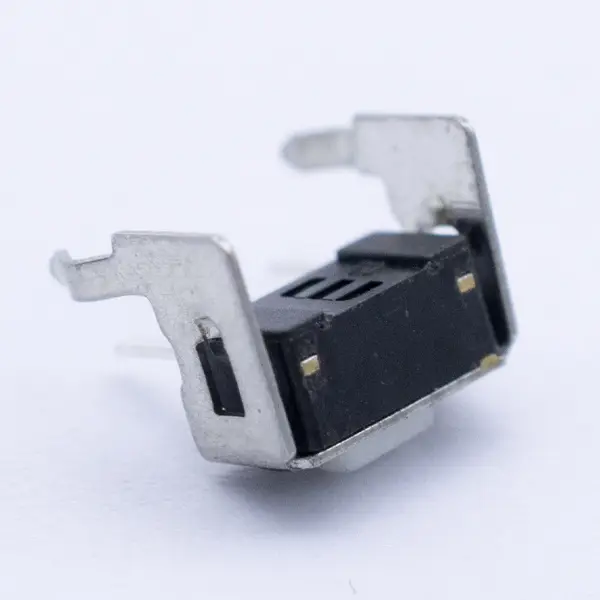

The Hanxia PCB Tactile Switch is a compact, high-performance solution for printed circuit board applications requiring reliable momentary input. Designed for smooth integration, it offers excellent tactile feedback, long life, and durability across a wide range of electronic devices.
- Item Name: Official Website Touch Switch TS3645ZJ 250GF 015
- Operating Temperature: 260 ± 5 ℃
- Relative Humidity: ≤80%RH
- Rating: 50mA 12V DC
- Contact Resistance: ≤100mΩ
- Resistance Insulation: ≥100mΩ
- Operating Force: 250gf±50gf
- Dielectric Strength: 250V 50Hz 1Min
- Contact Journey: 0.2±0.1mm
- Lifetime: 30000 cycles min
Application Field
-
Remote controls
-
Consumer electronics
-
Home appliances
-
Communication devices
-
Industrial control systems
-
Medical equipment
