Product Specification
| Sirles | Tact Switches |
| Model | TS263065A |
| 1. Rating | 50mA 12VDC |
| 2. Constrution Dimension | Apply to the appended drawing |
| 3. Appearance | Have no remarkable damage, crack and rust etc. |
| 4. Contactloop | Monople loop |
Product Description

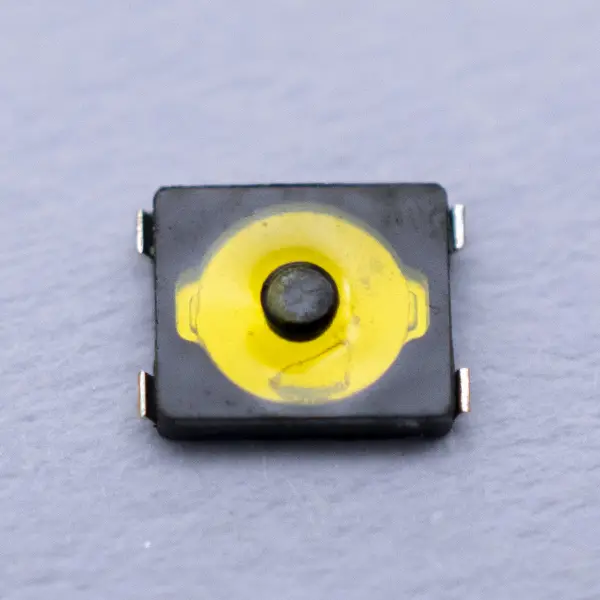

- Item Name: Tact Switch TS263065A 100GF Tape 002
- Operating Temperature: -30 to 85℃
- Relative Humidity: ≤80%RH
- Rating: 50mA 12V DC
- Contact Resistance: ≤100mΩ
- Resistance Insulation: ≥100mΩ
- Actuating Force: 300gf±50gf
- Dielectric Strength: 250V 50Hz 1Min
- Contact Journey: 0.15±0.05mm
- Mechanical Lifetime: 50000 cycles
Application Field
Operating switches in all types of electronic equipment, such as audio apparatus, office equipment, communication apparatus, measuring instruments, TV sets, VCRS
