Product Specification
| Sirles | Flip Switches |
| Model | HX TS66HTP 250gf 0094 |
| 1. Rating | 50mA 12VDC |
| 2. Constrution Dimension | Apply to the appended drawing |
| 3. Appearance | Have no remarkable damage, crack and rust etc. |
| 4. Contactloop | Monople loop |
Product Description
Hanxia’s SMD Tact Switches with ISO certification are engineered for reliability, consistency, and safety across a wide range of electronic applications. Built to meet international standards, these compact surface-mount switches offer excellent tactile feedback, long operational life, and seamless integration into automated manufacturing lines.

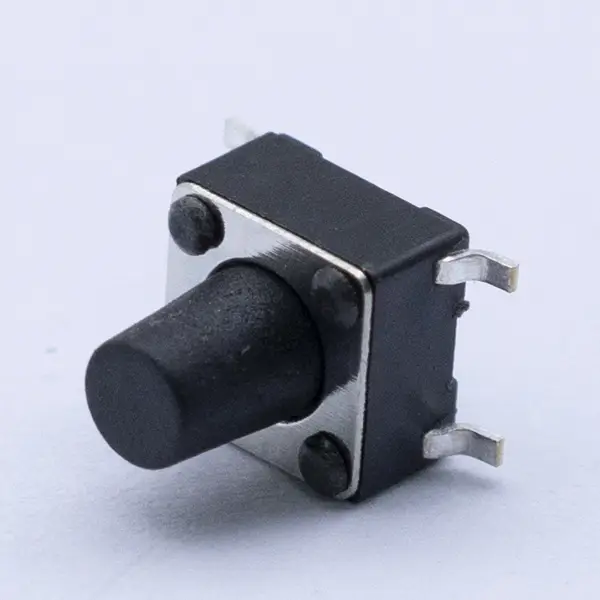

- Item Name: Tact Switch TS6675TP 250GF 290
- Operating Temperature: -25 to 70℃
- Relative Humidity: ≤80%RH
- Rating: 50mA 12V DC
- Contact Resistance: ≤100mΩ
- Resistance Insulation: ≥100mΩ
- Operating Force: 250gf±50gf
- Dielectric Strength: 250V 50Hz 1min
- Contact Journey: 0.20±0.1mm
- Lifetime: 100, 000 cycles
Application Field
- Consumer electronics
- Smart wearables
- Automotive control panels
- Industrial equipment interfaces
- Medical devices
- Communication devices
Why Choose Us
Extensive Industry Experience
Founded in 2014, Hanxia has over 10 years of expertise in electronic component manufacturing. We proudly serve 7,500+ customers across global markets including the United States, Germany, South Korea, Taiwan, and Hong Kong.
Advanced Automated Production
-
38 fully automated production lines ensure high-volume, consistent output.
-
Daily production capacity exceeds 2 million units, supporting fast and efficient order fulfillment.
-
Technical collaboration with Korean partners brings cutting-edge, fully automated assembly processes that reduce human error.
-
Fast, worry-free delivery, backed by a 90-day no-questions-asked return policy.
Uncompromising Quality Control
-
Every stage of production is carefully monitored—from raw material inspection to in-line sampling and final product testing.
-
We provide 100% factory inspection, guaranteeing that each product meets or exceeds customer expectations for quality, performance, and durability.
 |
 |
 |
 |
 |
 |
