Product Specification
| Sirles | Flip Switches |
| Model | HX TS342A2P WZ 250GF |
| 1. Rating | 50mA 12VDC |
| 2. Constrution Dimension | Apply to the appended drawing |
| 3. Appearance | Have no remarkable damage, crack and rust etc. |
| 4. Contactloop | Monople loop |
Product Description

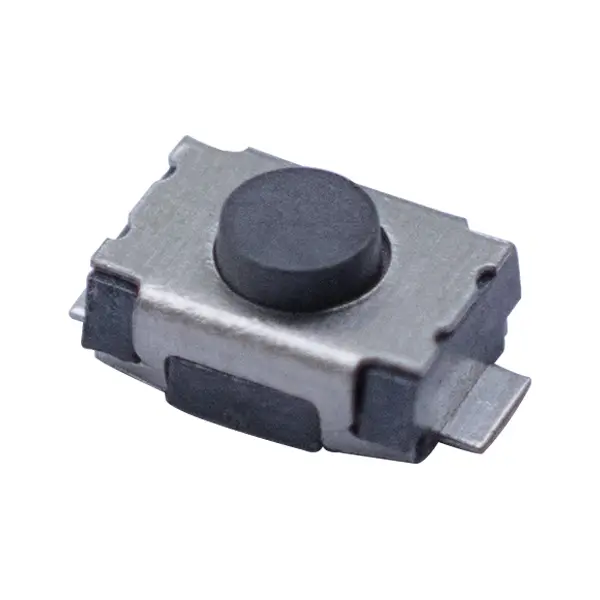

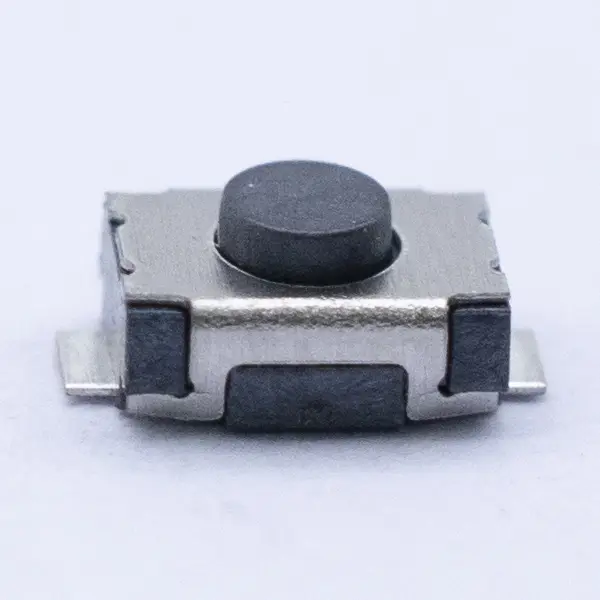

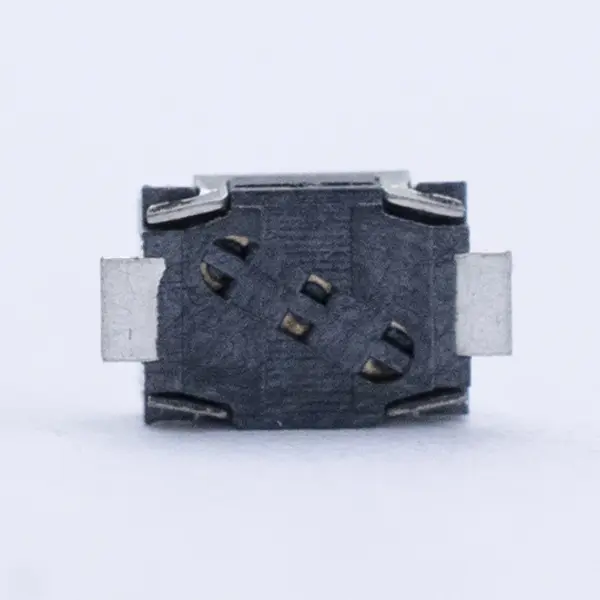

The Hanxia SMD Tactile Switch 3×4 2-Pin is a compact, low-profile switch specifically designed for precision medical applications such as digital blood pressure monitors. It offers reliable tactile feedback and a durable structure, ensuring accurate input with minimal effort—critical for health monitoring devices.
- Item Name: Touch Switch TS342A2P 250GF without Column 293
- Operating Temperature: -25 to 70℃
- Relative Humidity: ≤80%RH
- Rating: 50mA 12V DC
- Contact Resistance: ≤100mΩ
- Resistance Insulation: ≥100mΩ
- Operating Force: 250gf±50gf
- Dielectric Strength: 250V 50Hz 1Min
- Contact Journey: 0.15±0.10mm
- Lifetime: 30, 000 cycles min
Application Field
-
Digital blood pressure monitors
-
Medical diagnostic tools
-
Portable health monitoring devices
-
Compact control panels
-
Wearable medical electronics
