Product Specification
| Sirles | Flip Switches |
| Model | HX TS45HCJ 250gf 009 |
| 1. Rating | 50mA 12VDC |
| 2. Constrution Dimension | Apply to the appended drawing |
| 3. Appearance | Have no remarkable damage, crack and rust etc. |
| 4. Contactloop | Monople loop |
Product Description

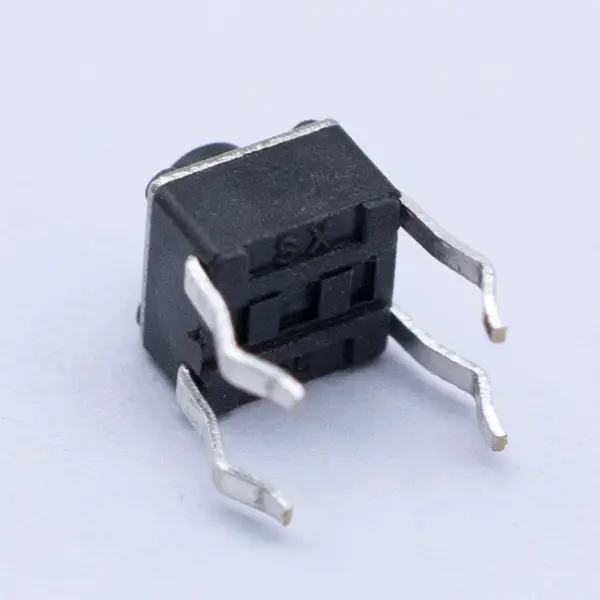

The Hanxia Tact Switch DIP (Dual In-line Package) is a robust and reliable tactile switch designed for through-hole mounting in a wide range of electronic applications. Built for consistent performance and easy integration, it delivers excellent tactile feedback and long-lasting durability.
- Item Name: Touch Switch TS4543CJ 250GF 290
- Operating Temperature: -25 to 70℃
- Relative Humidity: ≤80%RH
- Rating: 50mA 12V DC
- Contact Resistance: ≤100mΩ
- Resistance Insulation: ≥100mΩ
- Operating Force: 250gf±50gf
- Dielectric Strength: 250V 50Hz 1Min
- Contact Journey: 0.20±0.1mm
- Lifetime: 100,000 cycles min
Application Field
-
Home Appliances
-
Audio Equipment
-
Industrial Control Panels
-
Consumer Electronics
-
Automotive Electronics
-
Medical Devices
Why Choose Us
Partnering with Hanxia means selecting a business which puts quality together with reliability and excellent service at the forefront. The following characteristics have made us trustworthy to numerous global customers:
Extensive Industry Experience
Hanxia has established itself since 2014 to provide more than ten years of experience in electronic component production. Our company delivers services to in excess of 7,500 customers who operate in major markets spanning the United States Germany South Korea Taiwan and Hong Kong.
Advanced and Efficient Production
Our production operations run with the advantage of 38 automated assembly systems to achieve both high-speed and precise manufacturing.
The facility delivers more than 2 million finished products daily to handle large-scale production requirements. We partnered with Korean firms to install advanced automatic assembly machines which minimize human mistakes while achieving higher accuracy levels.
Every order comes with a complete risk-free return guarantee that remains effectiveness for 90 days for maximum peace of mind.
Quality You Can Rely On
- Quality control measures remain strict during all stages of production at our facility.
- Raw Material Inspection
- In-line Sampling During Manufacturing
- Thorough Finished Product Testing
- Factory inspectors examine every product to confirm it satisfies our high standards for performance and durability.
 |
 |
 |
 |
 |
 |
