Product Specification
| Sirles | Tact Switches |
| Model | TS6631BA 250gf |
| 1. Rating | 50mA 12VDC |
| 2. Constrution Dimension | Apply to the appended drawing |
| 3. Appearance | Have no remarkable damage, crack and rust etc. |
| 4. Contactloop | Monople loop |
Product Description

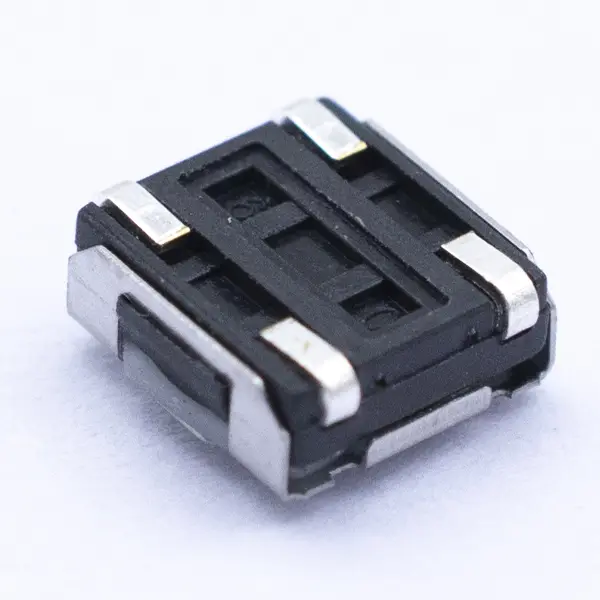

Hanxia’s Tact Switch J Bend Silicone Button is engineered for high performance in demanding applications, combining the unique J bend design with a durable silicone actuator. This switch delivers precise tactile feedback and reliable operation, ensuring a smooth, responsive feel with every press. Its robust construction and silicone cover protect the switch from dust, moisture, and everyday wear, making it an ideal solution for environments that demand longevity and consistent performance.
- Item Name: Tact Switch TS6631 130GF with Dot White Button Black Seat R 031
- Operating Temperature: -25 to 70℃
- Relative Humidity: ≤80%RH
- Rating: 50mA 12V DC
- Contact Resistance: ≤100mΩ
- Resistance Insulation: ≥100mΩ
- Operating Force: 250gf±50gf
- Dielectric Strength: 250V 50Hz 1min
- Contact Journey: 0.25±0.1mm
- Lifetime: 100, 000 cycles
Application Field
-
Industrial Control Panels: Perfect for systems requiring durable, reliable input mechanisms in demanding environments.
-
Consumer Electronics: Ideal for use in devices such as home appliances, remote controls, and smart devices.
-
Automotive Electronics: A great choice for integrating into vehicle dashboards and control modules.
-
Medical Devices: Suitable for equipment where accurate and durable tactile feedback is critical for safety and performance.
-
Audio and Multimedia Equipment: Enhances user interaction in devices like speakers, amplifiers, and media controllers.
Why Choose Us
Partnering with Hanxia means selecting a business which puts quality together with reliability and excellent service at the forefront. The following characteristics have made us trustworthy to numerous global customers:
Extensive Industry Experience
Hanxia has established itself since 2014 to provide more than ten years of experience in electronic component production. Our company delivers services to in excess of 7,500 customers who operate in major markets spanning the United States Germany South Korea Taiwan and Hong Kong.
Advanced and Efficient Production
Our production operations run with the advantage of 38 automated assembly systems to achieve both high-speed and precise manufacturing.
The facility delivers more than 2 million finished products daily to handle large-scale production requirements.
We partnered with Korean firms to install advanced automatic assembly machines which minimize human mistakes while achieving higher accuracy levels. Every order comes with a complete risk-free return guarantee that remains effectiveness for 90 days for maximum peace of mind.
Quality You Can Rely On
- Quality control measures remain strict during all stages of production at our facility.
- Raw Material Inspection
- In-line Sampling During Manufacturing
- Thorough Finished Product Testing
- Factory inspectors examine every product to confirm it satisfies our high standards for performance and durability.
 |
 |
 |
 |
 |
 |
