Product Specification
| Sirles | Tact Switches |
| Model | HX TS66HPA 250gf4 |
| 1. Rating | 50mA 12VDC |
| 2. Constrution Dimension | Apply to the appended drawing |
| 3. Appearance | Have no remarkable damage, crack and rust etc. |
| 4. Contactloop | Monople loop |
Product Description

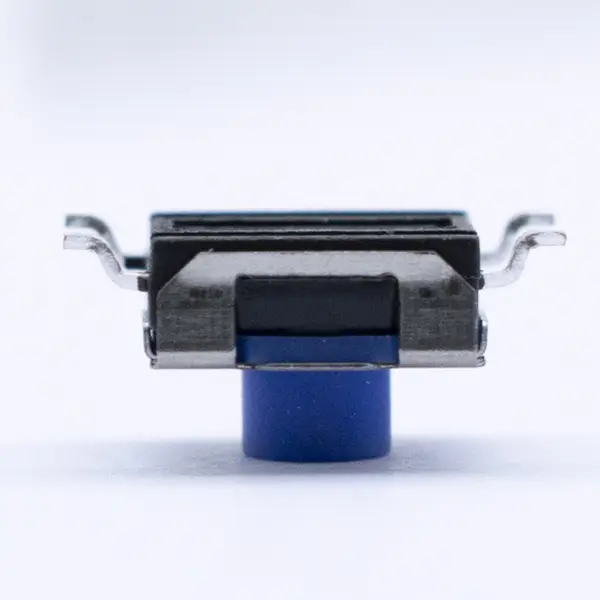

Hanxia’s Tact Switch Silicone Button 5 Pin | Precise is engineered for applications that demand accurate control and outstanding durability. This tactile switch features a robust silicone actuator combined with a 5-pin configuration, providing enhanced electrical stability and consistent performance under high-frequency use. Its precise actuation and clear tactile feedback make it ideal for systems where every press counts, ensuring seamless user interaction.
- Item Name: Tact Switch TS6645PA 250GF Blue Button Black Base R 031
- Operating Temperature: -25 to 70℃
- Relative Humidity: ≤80%RH
- Rating: 50mA 12V DC
- Contact Resistance: ≤100mΩ
- Resistance Insulation: ≥100mΩ
- Operating Force: 250gf±50gf
- Dielectric Strength: 250V 50Hz 1min
- Contact Journey: 0.25±0.1mm
- Lifetime: 100, 000 cycles
Application Field
-
Consumer Electronics: Suitable for use in remote controls, audio devices, and handheld gadgets where precise input is essential.
-
Home Appliances: Ideal for control panels in smart appliances that demand consistent tactile feedback, such as washing machines, microwaves, and TVs.
-
Industrial Equipment: Perfect for industrial control systems, where reliability and precision are critical for system integrity.
-
Automotive Applications: Can be incorporated into vehicle dashboards and controls for comfort and infotainment systems.
-
Medical Devices: Ensures accurate operation in medical monitoring and diagnostic equipment that require critical user inputs.
Why Choose Us
Partnering with Hanxia means selecting a business which puts quality together with reliability and excellent service at the forefront. The following characteristics have made us trustworthy to numerous global customers:
Extensive Industry Experience
Hanxia has established itself since 2014 to provide more than ten years of experience in electronic component production. Our company delivers services to in excess of 7,500 customers who operate in major markets spanning the United States Germany South Korea Taiwan and Hong Kong.
Advanced and Efficient Production
Our production operations run with the advantage of 38 automated assembly systems to achieve both high-speed and precise manufacturing.
The facility delivers more than 2 million finished products daily to handle large-scale production requirements.
We partnered with Korean firms to install advanced automatic assembly machines which minimize human mistakes while achieving higher accuracy levels. Every order comes with a complete risk-free return guarantee that remains effectiveness for 90 days for maximum peace of mind.
Quality You Can Rely On
- Quality control measures remain strict during all stages of production at our facility.
- Raw Material Inspection
- In-line Sampling During Manufacturing
- Thorough Finished Product Testing
- Factory inspectors examine every product to confirm it satisfies our high standards for performance and durability.
 |
 |
 |
 |
 |
 |
