Product Specification
| Sirles | Tact Switches |
| Model | HX TS6673TPFT |
| 1. Rating | 50mA 12VDC |
| 2. Constrution Dimension | Apply to the appended drawing |
| 3. Appearance | Have no remarkable damage, crack and rust etc. |
| 4. Contactloop | Monople loop |
Product Description

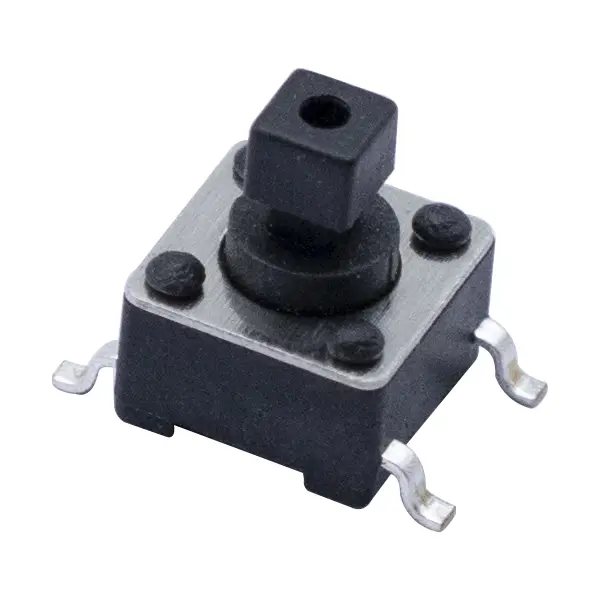

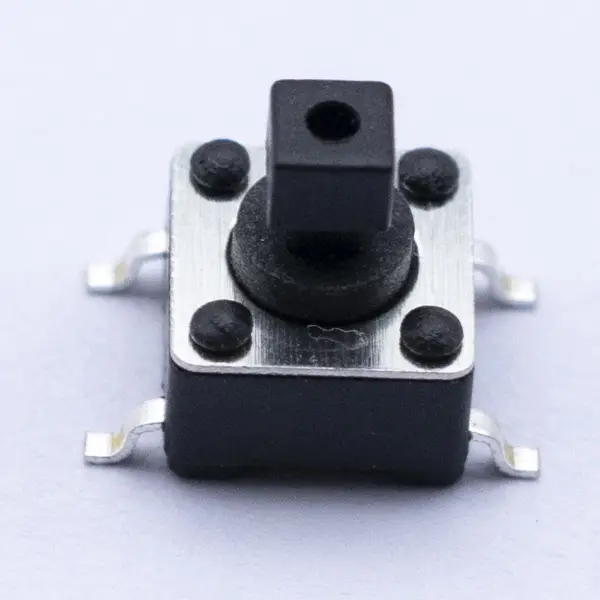

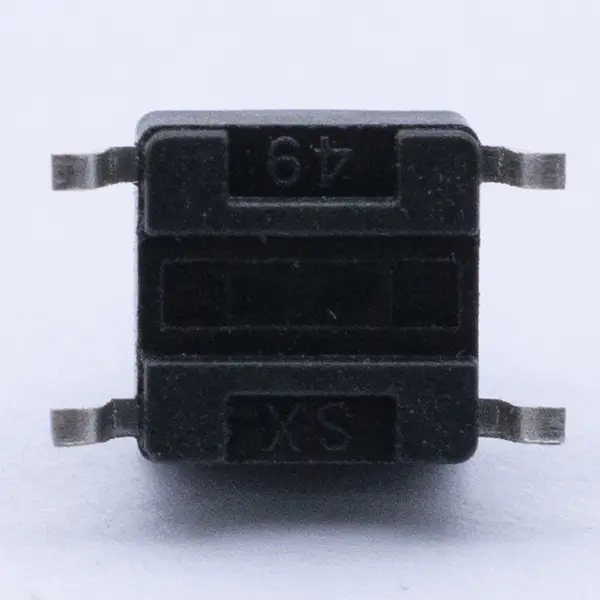

The Hanxia RoHS-Compliant Tactile Switch is a compact, high-precision momentary switch designed for environmentally conscious electronic applications. Fully compliant with the Restriction of Hazardous Substances (RoHS) directive, this switch ensures safety and sustainability without compromising performance. With a responsive tactile feel and compact size, it is suitable for a wide range of devices across consumer, industrial, and communication sectors.
- Item Name: TS6673TP Square Head 290
- Operating Temperature: -25 to 70℃
- Relative Humidity: ≤80%RH
- Rating: 50mA 12V DC
- Contact Resistance: ≤100mΩ
- Resistance Insulation: ≥100mΩ
- Operating Force: 250gf±50gf
- Dielectric Strength: 250V 50Hz 1min
- Contact Journey: 0.25±0.1mm
- Lifetime: 100, 000 cycles
Application Field
- Consumer electronics (remote controls, keyboards, earphones)
- Automotive electronics (infotainment systems, steering controls)
- Medical devices and equipment
- Smart home interfaces and IoT devices
- Industrial control panels and instrumentation
Why Choose Us
Extensive Industry Experience
Founded in 2014, Hanxia has over 10 years of expertise in electronic component manufacturing. We proudly serve 7,500+ customers across global markets including the United States, Germany, South Korea, Taiwan, and Hong Kong.
Advanced Automated Production
-
38 fully automated production lines ensure high-volume, consistent output.
-
Daily production capacity exceeds 2 million units, supporting fast and efficient order fulfillment.
-
Technical collaboration with Korean partners brings cutting-edge, fully automated assembly processes that reduce human error.
-
Fast, worry-free delivery, backed by a 90-day no-questions-asked return policy.
Uncompromising Quality Control
-
Every stage of production is carefully monitored—from raw material inspection to in-line sampling and final product testing.
-
We provide 100% factory inspection, guaranteeing that each product meets or exceeds customer expectations for quality, performance, and durability.
 |
 |
 |
 |
 |
 |
