Product Specification
| Sirles | Tact Switches |
| Model | HX TS3307A 250gf 025 |
| 1. Rating | 50mA 12VDC |
| 2. Constrution Dimension | Apply to the appended drawing |
| 3. Appearance | Have no remarkable damage, crack and rust etc. |
| 4. Contactloop | Monople loop |
Product Description

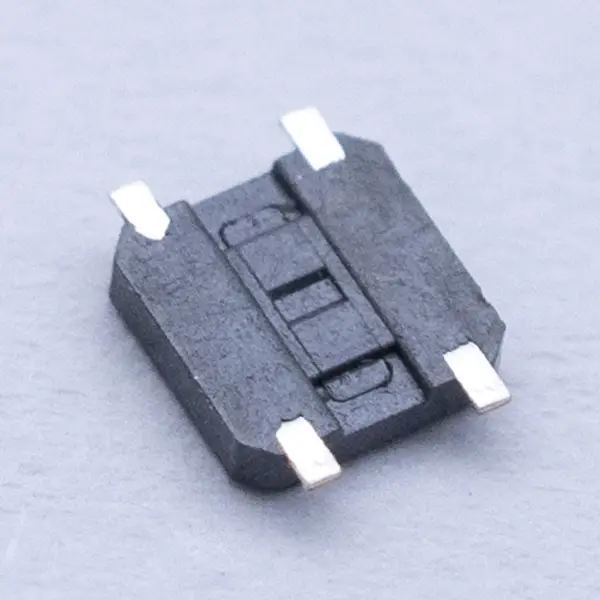

Hanxia’s SMD 3×3 Tactile Switches are compact, surface-mount devices specifically designed for automotive seat heater control systems. These switches deliver crisp tactile feedback in a compact footprint, ideal for integration into dashboard modules, control panels, or steering wheel controls. With stable performance under varying environmental conditions, they ensure reliable user input for comfort systems like seat heaters.
- Item Name: Tact Switch TS3307A 160GF 025
- Operating Temperature: -25 to 70℃
- Relative Humidity: ≤80%RH
- Rating: 50mA 12V DC
- Contact Resistance: ≤100mΩ
- Resistance Insulation: ≥100mΩ
- Operating Force: 250gf±50gf
- Dielectric Strength: 250V 50Hz 1min
- Contact Journey: 0.15±0.10mm
- Lifetime: 50, 000 cycles
Application Field
-
Automotive Seat Heaters: Used in control interfaces to activate or adjust heating levels.
-
Dashboard Control Panels: Suitable for HVAC and comfort feature control in passenger and commercial vehicles.
-
Steering Wheel Controls: Ideal for auxiliary functions like climate comfort adjustment.
-
Center Console Modules: Integrated in smart button arrays for user-friendly seat climate control.
-
Other Automotive Electronics: Also applicable in lighting, infotainment, and mirror adjustment systems.
Why Choose Us
Hanxia stands for consistent quality, dependable service, and trusted expertise in electronic components. Here’s what makes us a reliable partner:
Proven Industry Experience
Established in 2014, Hanxia brings over 10 years of expertise in electronic component manufacturing. We proudly serve more than 7,500 customers across key global markets including the United States, Germany, South Korea, Taiwan, and Hong Kong.
Advanced, Efficient Manufacturing
- 38 fully automated production lines ensure stable, high-volume output—over 2 million units per day.
- Technical collaboration with Korean partners allows us to adopt fully automated assembly, minimizing human error.
- Fast, reliable delivery with a 90-day no-questions-asked return policy, providing peace of mind with every order.
Commitment to Quality
- Strict quality control at every stage—from raw material inspection and in-line sampling to final product testing.
- 100% factory inspection ensures each product meets or exceeds performance and durability standards.
 |
 |
 |
 |
 |
 |
